Star-delta Electrical Starter Box Motor

  • Model:LTQX4-55KW
  • Frequency: AC 50/60HZ
  • Rated Voltage: 380V
  • Power: 55KW
  • Ambient temperture:-25℃~+40℃
  • Relative Humidity: not exceed 85%(at temperature 20℃±5℃)
  • Alititude:<2000m
  • Standard: accord with GB14048.4
  • OEM/ODM: Available
BASIC INFO
Directly China Supply 380V 55KW Star-delta Electrical Starter Box Motor with Reduced Voltage





Specification for  380V 45KW Star Delta Motor Starter
  • Model: LTQX4-55KW
  • Frequency: AC 50/60HZ
  • Rated Voltage: 380V
  • Power: 55KW
  • Ambient temperture:-25℃~+40℃
  • Relative Humidity: not exceed 85%(at temperature 20℃±5℃)
  • Alititude:<2000m
  • Standard: accord with GB14048.4
  • OEM/ODM: Available
  • Application: Widely used in machinery, petroleum, chemical, power, coal and other fields of the motor system
    Technical Parameters for Star Delta Starter
    380V squirrel
    cage motor power
    The main circuit thermal relay  setted time(adjustable)
    KM1 KM2 KM3 KT time relayY-△)
    below 22kw CJX2-40 CJX2-25 CJX2-40 JR36-63/JR36-20 JS14A 5~9S
    22~37kw CJX2-40 CJX2-40 CJX2-40 JR36-63/JR36-160 JS14A 9S
    37~45kw CJX2-65 CJX2-50 CJX2-65 JR36-160 JS14A 9~13S
    45~55kw CJX2-95 CJX2-65 CJX2-65 JR36-160 JS14A 9~13S
    55KW~75KW CJX2-95 CJX2-95 CJX2-95 JR36-160 JS14A 15S
    CJX2-160 CJX2-95 CJX2-160 JR36-160 JS14A 15S

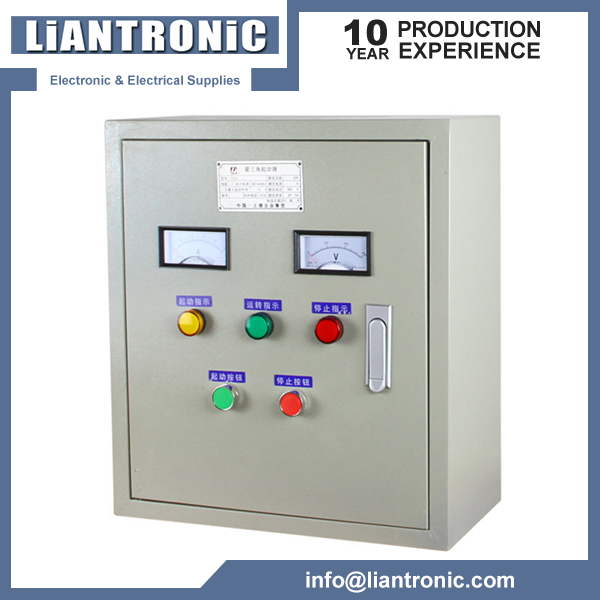

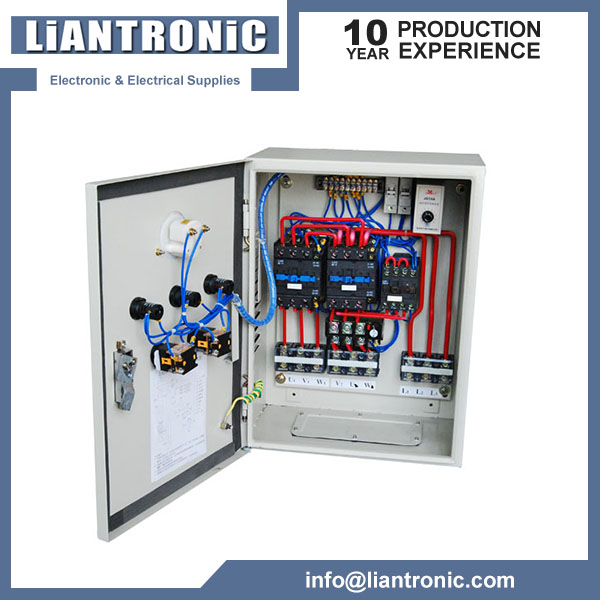

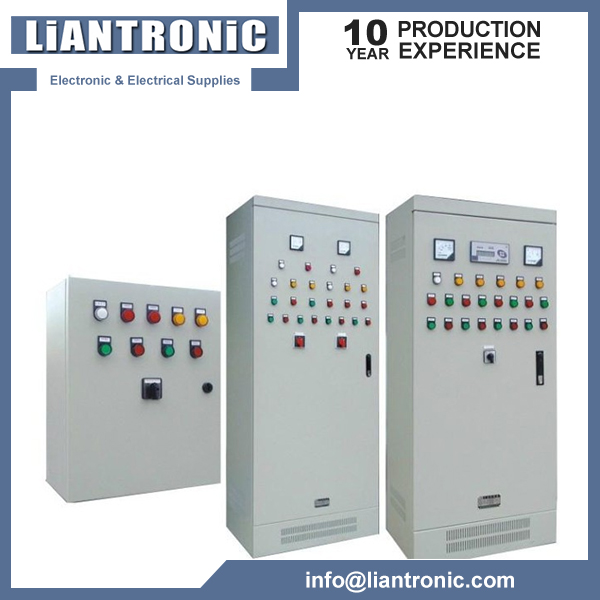

Product Photos for 45KW Star Delta Motor Startewith AC 50Hz/60Hz

 The star delta starter applicable to AC 50HZ or 60HZ,rated voltage of 380V,4AC-3 power of 145KW,For the following inquirrel motor start using,The starting method form"Y"automaticaly replaced by"△"method.The motor has under and over load protection,widely used compressors,fans,pumps and other equipments.The product meets GB14048.4.












 For More details,Please don't hesitate to send inquiry or call me by 0086 13968779429 anytime.  Any quantities are welcome here!!!
