Zhejiang Hairui Electronic Technology Co.,Ltd.

Volume Slide Potentiometer

  • Model: LT-16K6
  • Type: Rotary Potentiometer
  • Technology: Carbon Film
  • Total Resistance: 1KΩ-1MΩ
  • Resistance Tolerance: ±20%
  • Max. Operating Voltage:150VAC
  • Operating Temperature:-20~+70°c
  • Shaft diameter: 6.0/ 6.35mm
  • Shaft Type: Flat/ Round/ Teeth Knurl Types
BASIC INFO

Wholesale Vertical Type 16MM Linear Taper 5k ohm Volume Slide Potentiometer in Stock



Specification for 5k ohm Volume Slide Potentiometer
  • Model:LT-16K6
  • Type: Rotary Potentiometer
  • Technology:Carbon Film
  • Total Resistance: 1KΩ-1MΩ
  • Resistance Tolerance: ±20%
  • Max. Operating Voltage: Single Unit: AC50V/DC20V;Dual Unit: DC 20V
  • Operating Temperature-20~+70℃
  • Shaft Diameter: 6.0/ 6.35mm
  • Shaft Type: Flat/ Round/ Teeth Knurl Types
  • Number of Turns: Single
  • Working Life:100000 times
  • Accessories:Nut & Washer
  • Terminals:Long PCB
  • Total Rotational Angle: 300°C+/-5°C
  • Rotational Torque:10gf.cm~100gf.cm
  • Rotational Stopper Strength: 8.0kgf min
  • Push-Pull Strength:3.0Kgf.cm Min
  • Click torque: 50gf.cm~180gf.cm
  • Resistance Value:Various Resistance Available
   Trading Details for Vertical Type 16MM Linear Taper Volume Slide Potentiometer
  • Samples: for free
  • Packings:  1000PCS/CARTON
  •  MOQ: 500PCS
  • Lead Time: usually delivery within 5-10days after payment received
  • Shipping Methords: by express (DHL/UPS/TNT/FedEx) or by Air or by Sea
  •  Payment Details: below 10000USD, 100%TT in advance  ;exceed 10000USD, 40% TT in advance, the balance paid before shipment

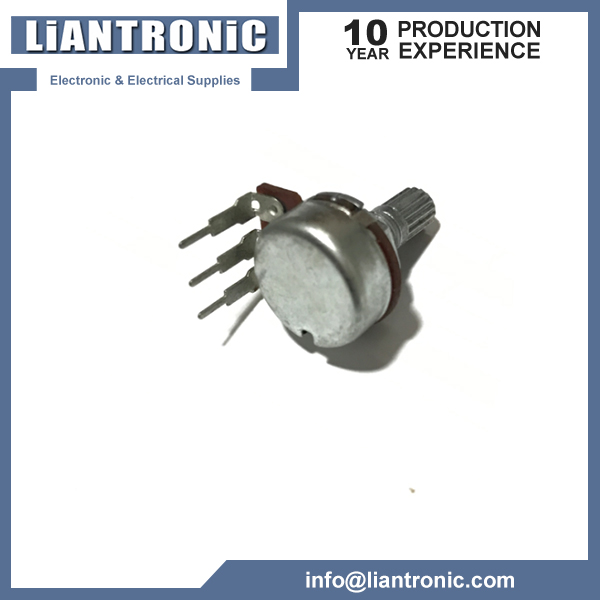

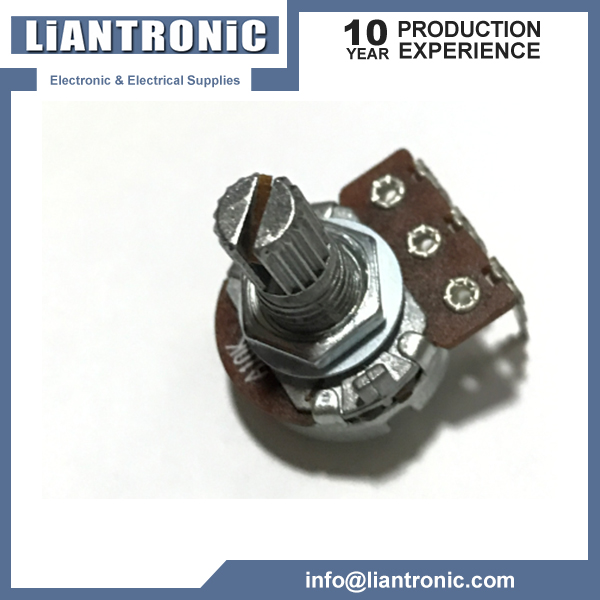

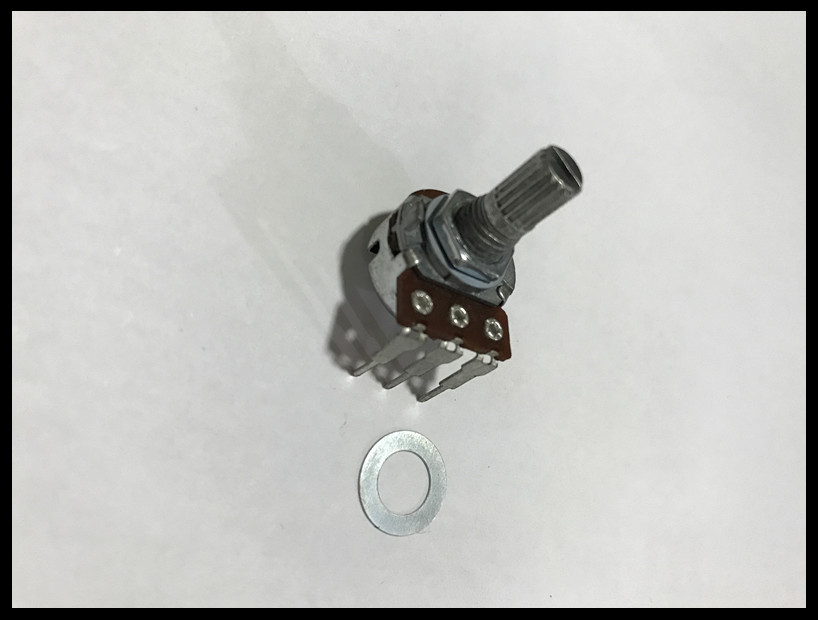

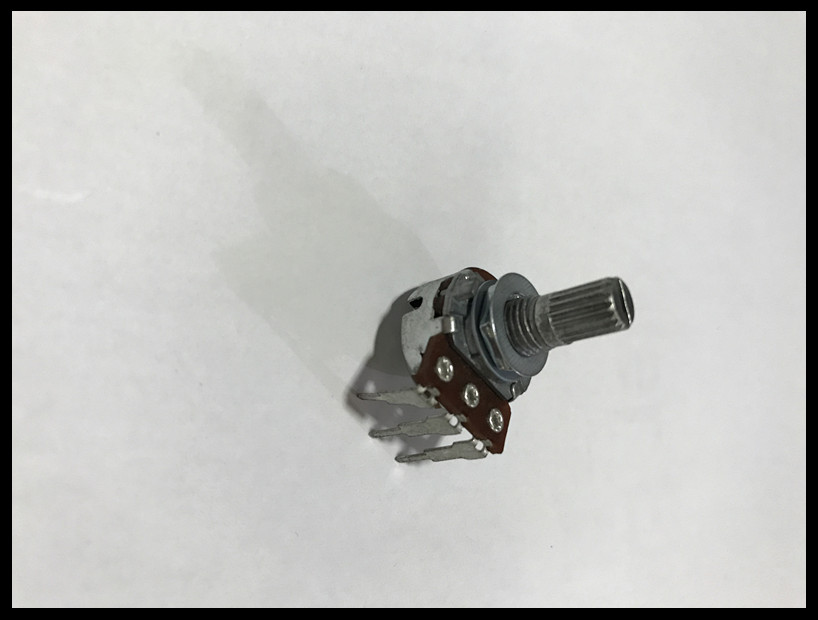

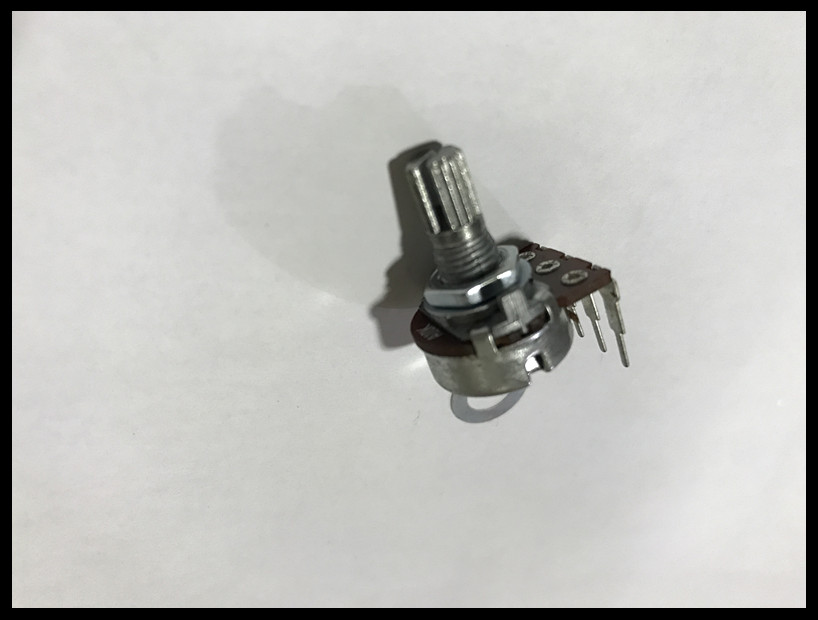

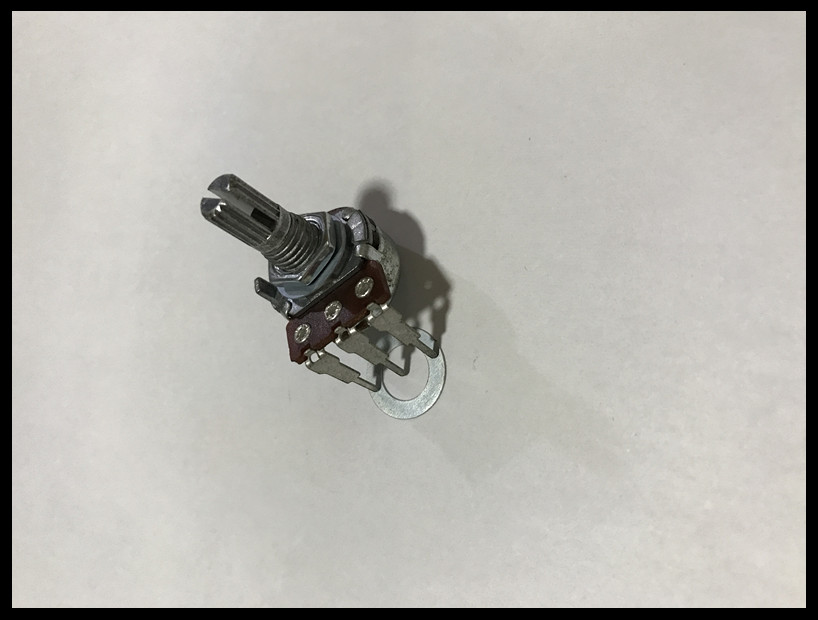

The Product Details for  Single Short Shank 100K Rotary Potentiometer
It is great for the DIY pedal builder that is just getting started in building pedals.
Also, the rotary potentiometer could be widely used in Household Appliances, Electric Force, Telecommunications, Machine Tool, Vessel, Textile, Printing, Mining machine, Musical Instrument,Stage Lighting Equipment,Sound Console etc.






   For More details,Please don't hesitate to send inquiry or call me by 0086 13968779429 anytime.  Any quantities are welcome here!!!
